TAYSSON TIG FEEDER - Build Kit

FULL BUILD GUIDE:
https://www.youtube.com/watch?v=YFi1iw7PSJE

STL FILES AND PARTS LIST:
https://drive.google.com/drive/u/2/folders/1BXwkAPqC5BHn5Ne-LtsCiRKJ8_Fs-zm9

NOTE: 3D PRINTED PARTS NOT INCLUDED IN KIT!

Most parts required to build a Taysson Tig Feeder from scratch. Check out the full guide posted to YouTube for how to assembly the TIG feeder:
https://www.youtube.com/@TayssonTools

Please allow up to 2-3 weeks for shipment to arrive as kits are prepared on demand.

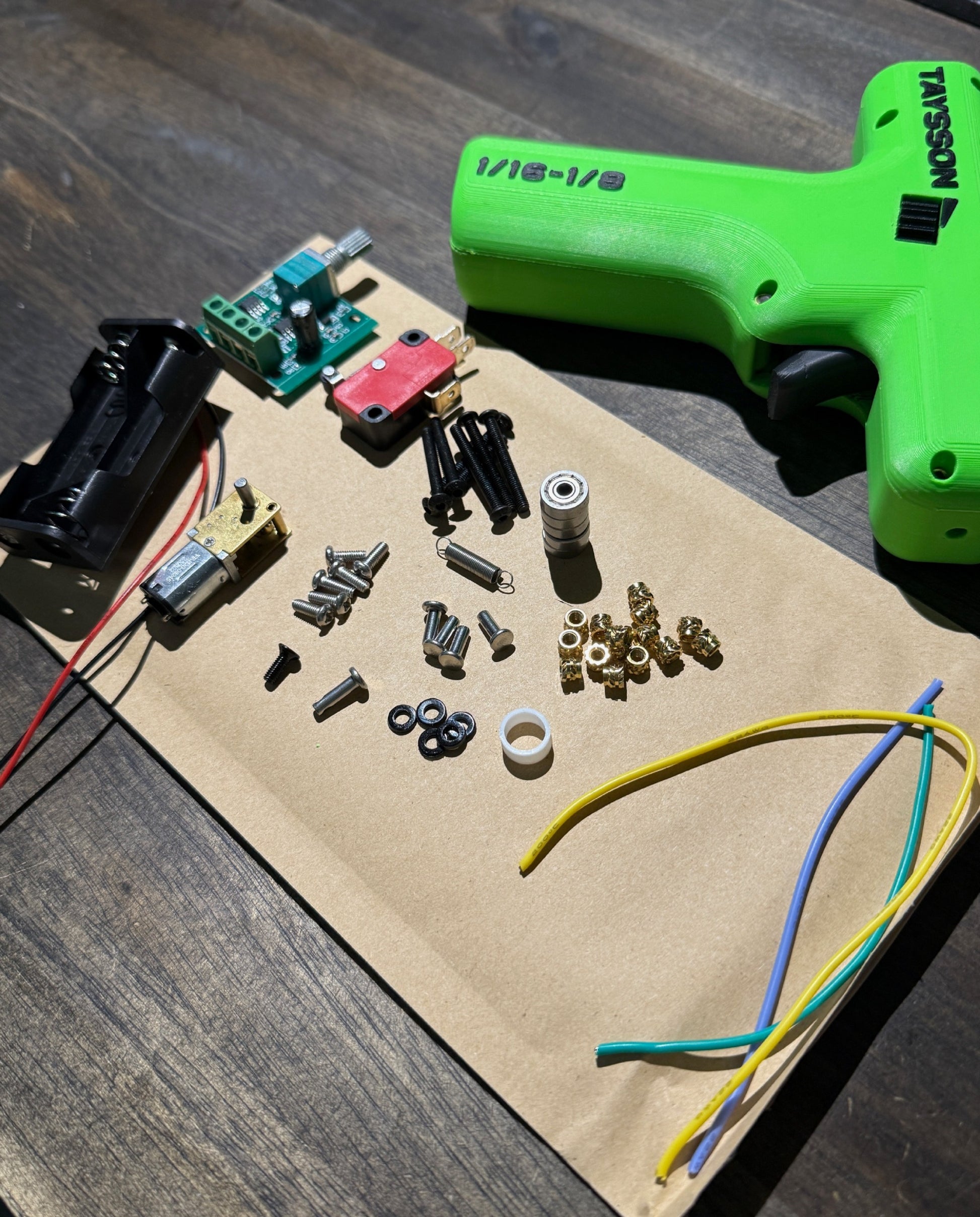

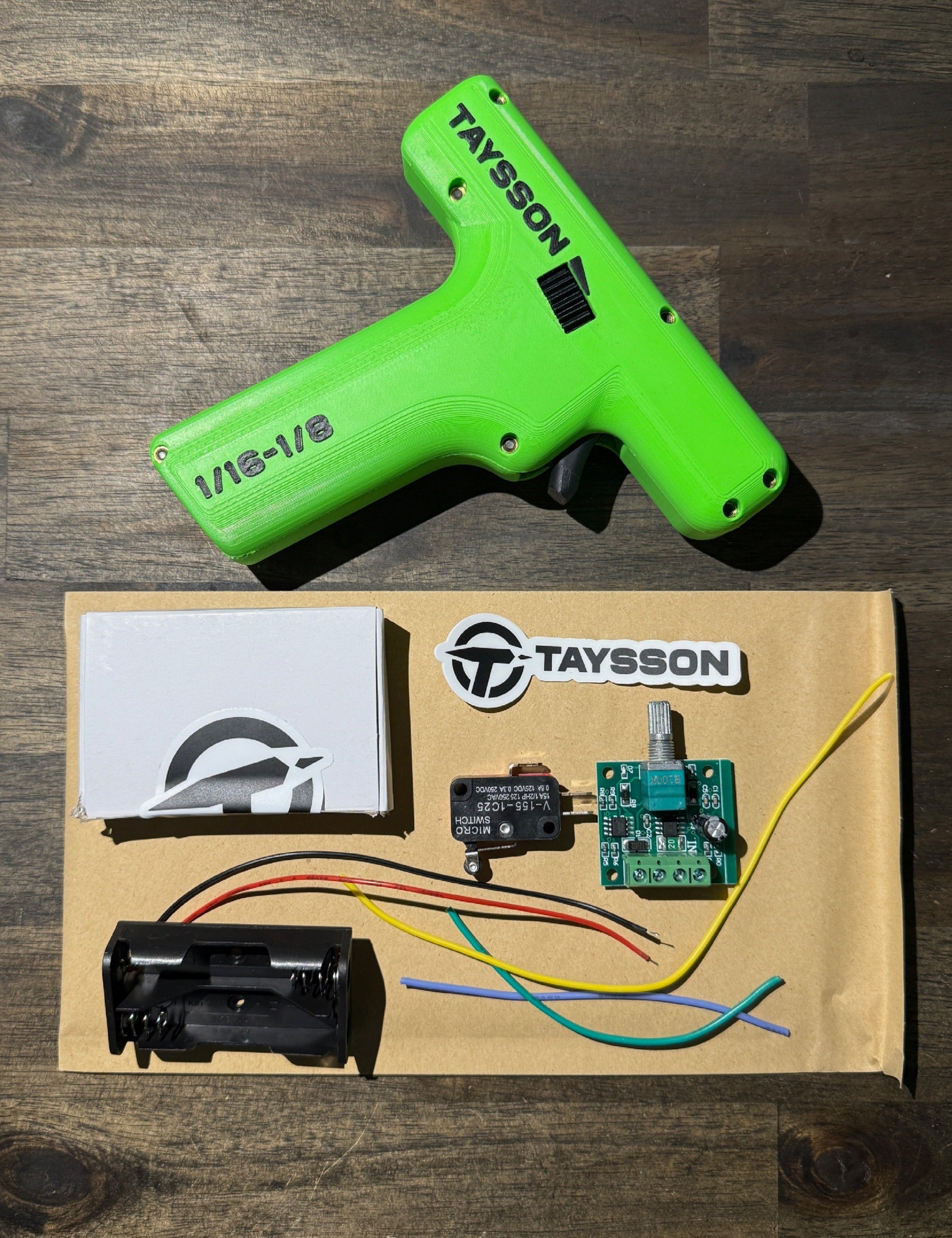

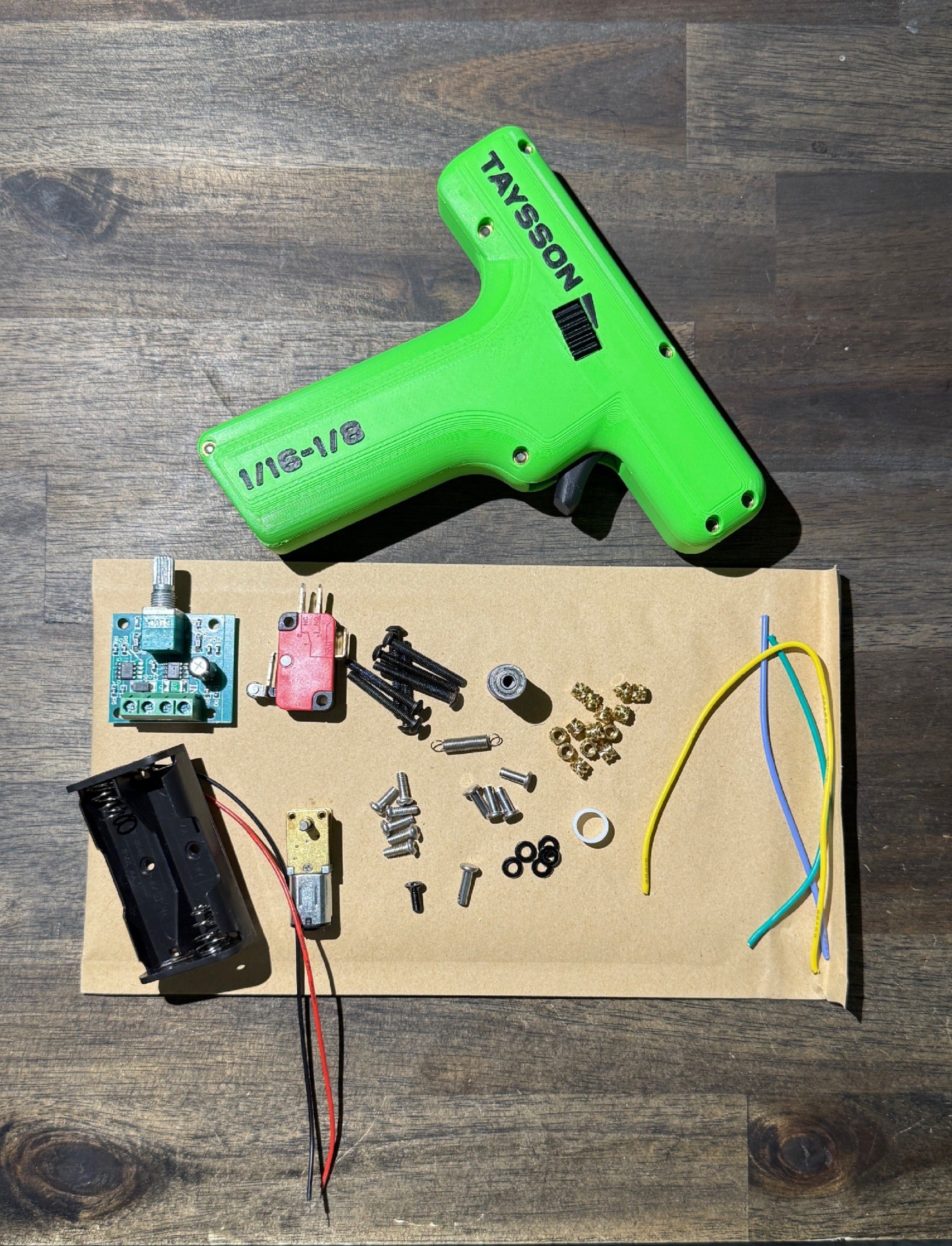

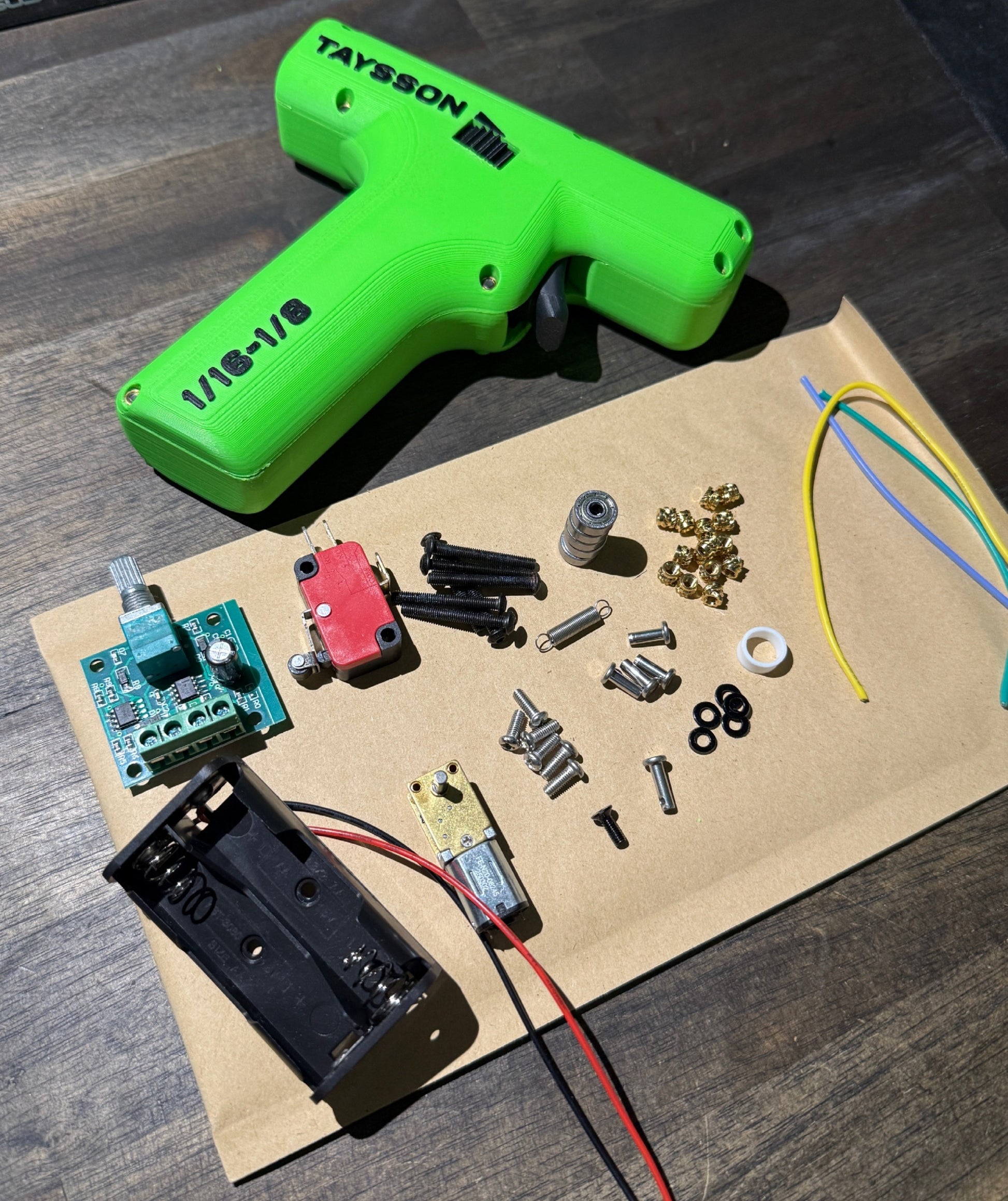

INCLUDED:

5: Worm Gear Motor, 90 degree shaft, 3V 30RPM QTY 1

6: 22-26 AWG Wire, 50cm QTY 2

8: 2AA Battery Holder Case QTY 1

9: 22-26 AWG Wire, 100cm QTY 1

11: DC 2A PWM Motor Speed Controller QTY 1

12: M3 Bolt, 8mm Philips Head, QTY 6

13: Push-Button Micro Switch V-155-1C25 QTY 1

15: M3 Bolt, 8mm Philips Head Countersunk, Black  QTY 1

16: M3 Bolt, 25mm Button Hex Head, Black, QTY 7

19: M3 Clevis Pin, 8mm, QTY 4

20: M3 Clevis Pin, 10mm QTY 1

21: M3 Nylon Flat Washers, 3mm ID 6mm OD 1mm Thickness, QTY 5

22: Motor Gear Rubber Band, 10mm Dia 1mm Thick 5mm Width QTY 1

23: Ball Bearing, 3mm ID 10mm OD 4mm width, QTY 5

24: M3x5(width)x4(length) Threaded Inserts, QTY 14

25: Tension Spring, .4mm thickness, 20mm tip-to-tip, 4mm width QTY 1

DOES NOT INCLUDE:

1: Pulley (3D PRINTED)

2: Scroll Wheel (3D PRINTED)

3: Motor Gear (3D PRINTED)

4: Motor Bracket (3D PRINTED)

7: Trigger (3D PRINTED)

10: AA Batteries, QTY 2

14: Left Side Case (3D PRINTED)

17: Spacer Block (3D PRINTED) & Feed Tube (55mm length, 4mm ID, 5mm OD)

18: Right Side Case (3D PRINTED)

26: Battery Cover (3D PRINTED)
